ArmSoM Display 7 HD

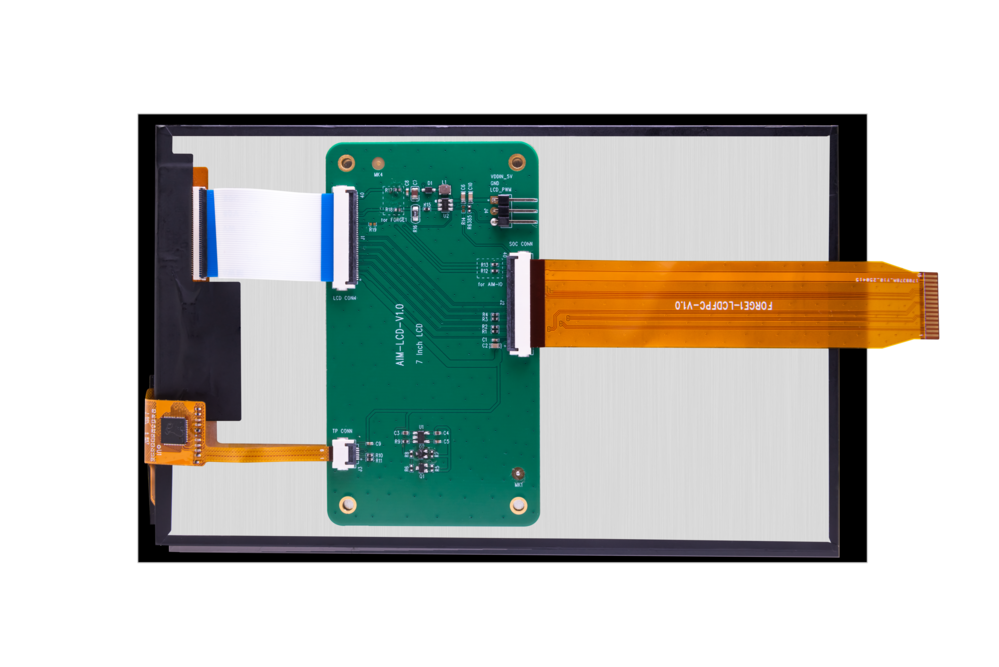

The ArmSoM Display 7 HD is a color active-matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as the switching device. This model consists of the following components:

  • TFT LCD Panel
  • Driving Circuit
  • Backlight System
  • Adapter Board

This TFT LCD features a 7.0-inch diagonally measured active display area with WXGA resolution (800 horizontal Γ— 1280 vertical pixels).

Ideal for interactive projects such as tablets, entertainment systems, and information dashboards.

armsom-display-10hd

Compatibility​

  • Forge1
  • AIM7

Display Panel Specifications​

Basic Parameters​

  • Panel Size: 7 inches (inch)
  • Number of Pixels: 800Γ—1280 (pixels)
  • Active Area: 94.2 mm Γ— 150.72 mm
  • Pixel Pitch: 0.11775 mm Γ— 0.11775 mm
  • Outline Dimension: 160.85 mm (H) Γ— 99.65 mm (W) Γ— 2.5 mm (D)

Display Characteristics​

  • Number of Colors: 16.7 million colors (16.7M)
  • Display Mode: Normally Black
  • Viewing Direction: IPS (In-Plane Switching)
  • Display Format: RGB Vertical Strip
  • Luminance: 300 cd/mΒ² (Typ.)
  • Contrast Ratio: 700:1 (Typ.)
  • Surface Treatment: Anti-Glare

Interfaces & Hardware​

  • Interface: MIPI (Mobile Industry Processor Interface)
  • Backlight: White LED
  • Driver IC: GH8555BL

Environmental & Physical Properties​

  • Operation Temperature: -10Β°C ~ 50Β°C
  • Storage Temperature: -20Β°C ~ 60Β°C
  • Weight: TBD (To Be Determined) / g

Resources​

πŸ“š

armsom-7HD.dwg

πŸ“œ

armsom-7HD.pdf

Purchase Samples​

ArmSoM Official Site: https://www.armsom.org/product-page/armsom-display-7-hd

ArmSoM Taobao Store: https://item.taobao.com/item.htm?id=923705669085

For OEM&ODM inquiries, please contact: sales@armsom.org
